Orange 5 Programmer
Orange 5 ECU Programmer Basic Set Include (HC05B-HC705B) (TMS) (HC11A/EXX-PLCC52) (05 KL-CAN)
$390.00
Out of stock

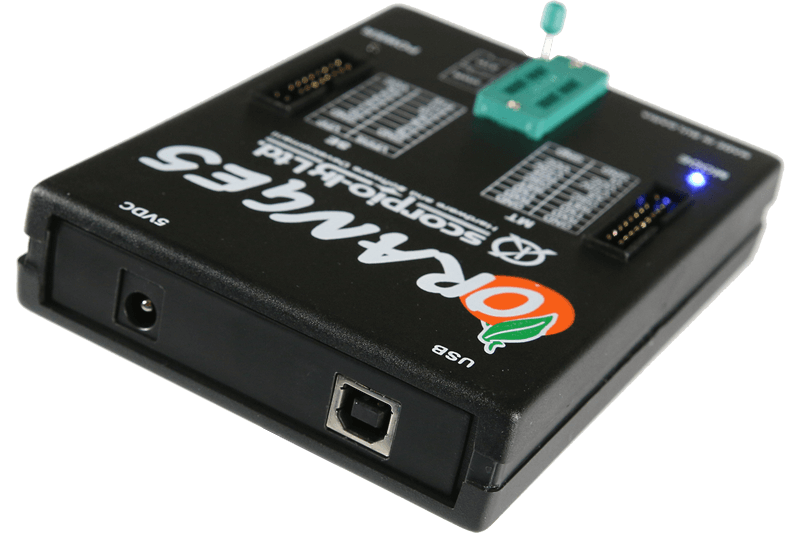

Orange-5 Programmer
Is a professional general purpose programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macrolanguage for writing down protocols, which gives fast and easy capability to add new types of ICs, precisely meeting manufacturers' requirements to read/write algorithms.
Hardware Features :
Universal easy to plug panel ZIF16 for EEPROMs
Control of contacts in the sockets

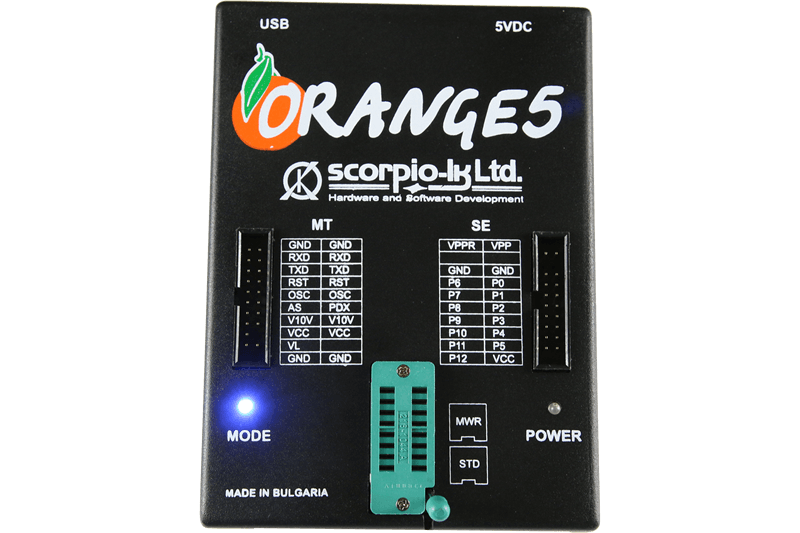

Two expansions sockets (MT & SE)
Protection against overcurrent
Overload voltage protection
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers.
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
Orange-5 Features
Orange-5 baseAdditional softwareEEPROMMCUMotorolaRenesas
Orange-5 Motorola & Freescale MCUs
Notes:
Functions marked with asterix "*" require programming to be performed on adapter
M08V is optional license not included in base software
Show 3050100250500 entries
Search:
Show 3050100250500 entries
Search:
Type | Chip Name | Manufacturer / Protocol |
|---|---|---|
MC68HC05 | MC68HC05B4 | Motorola, Freescale |
MC68HC05 | MC68HC05B6 | Motorola, Freescale |
MC68HC05 | MC68HC05B6 WDT | Motorola, Freescale |
MC68HC05 | MC68HC05B8 | Motorola, Freescale |
MC68HC05 | MC68HC05B8 WDT | Motorola, Freescale |
MC68HC05 | MC68HC05B16 | Motorola, Freescale |
MC68HC05 | MC68HC05B16 WDT | Motorola, Freescale |
MC68HC05 | MC68HC05B32 | Motorola, Freescale |
MC68HC05 | MC68HC05H12 | Motorola, Freescale |
MC68HC05 | MC68HC05K3 | Motorola, Freescale |
MC68HC05 | MC68HC05L28 | Motorola, Freescale |
MC68HC05 | MC68HC05P3 [1E25B] | Motorola, Freescale |
MC68HC05 | MC68HC05X16 | Motorola, Freescale |
MC68HC05 | MC68HC05X32 | Motorola, Freescale |
MC68HC05 | MC68HC05X32 div5 | Motorola, Freescale |
MC68HC05 | MC68HC705B16 | Motorola, Freescale |
MC68HC05 | MC68HC705B16 EPROM | Motorola, Freescale |
MC68HC05 | MC68HC705B16N | Motorola, Freescale |
MC68HC05 | MC68HC705B16N EPROM | Motorola, Freescale |
MC68HC05 | MC68HC705B32 | Motorola, Freescale |
MC68HC05 | MC68HC705B32 EPROM | Motorola, Freescale |
MC68HC05 | MC68HC705D9 | Motorola, Freescale |
MC68HC05 | MC68HC705E6 [F82B] | Motorola, Freescale |
MC68HC05 | MC68HC705E6 [G72G] | Motorola, Freescale |
MC68HC05 | MC68HC705E6 [H51A] | Motorola, Freescale |
MC68HC05 | MC68HC705E6 [F75B] | Motorola, Freescale |
MC68HC05 | MC68HC705P3 [F47V] | Motorola, Freescale |
MC68HC05 | MC68HC705P3 [F75B] | Motorola, Freescale |
MC68HC05 | MC68HC705X32 | Motorola, Freescale |
MC68HC05 | MC68HC705X32 div5 | Motorola, Freescale |
Showing 1 to 30 of 30 entries
Showing 1 to 30 of 208 entries
Orange-5 Renesas & NEC MCU List
Notes:
V850ES, V850E2F, RH850 & RL78 are optional licenses not included in base software
Show 3050100250500 entries
Search:
Group | Type | Chip Name | Availability |
|---|---|---|---|
Group 1 | H8SX | R5F61721 | Base Software |
Group 1 | H8SX | R5F61723 | Base Software |
Group 1 | H8SX | R5F61725 | Base Software |
Group 1 | H8SX | R5F61721 | Base Software |
Group 1 | H8SX | R5F61723 | Base Software |
Group 1 | H8SX | R5F61725 | Base Software |
Group 1 | H8SX | R5F61726 | Base Software |
Group 1 | H8SX | R5F61727 | Base Software |
Group 1 | H8SX | R5F61797 | Base Software |
Group 10 | R32C | R5F64213JFB | Base Software |
Group 10 | R32C | R5F64219JFB | Base Software |
Group 10 | R32C | R5F64524KFD | Base Software |
Group 11 | R32C SPI | R5F64114DFB | Base Software |
Group 11 | R32C SPI | R5F64165 | Base Software |
Group 11 | R32C SPI | R5F64166 | Base Software |
Group 11 | R32C SPI | R5F64167 | Base Software |
Group 11 | R32C SPI | R5F64168 | Base Software |
Group 11 | R32C SPI | R5F64169 | Base Software |
Group 11 | R32C SPI | R5F64201JFB | Base Software |
Group 11 | R32C SPI | R5F64207 | Base Software |
Group 11 | R32C SPI | R5F64216 | Base Software |
Group 11 | R32C SPI | R5F64217 | Base Software |
Group 11 | R32C SPI | R5F64218 | Base Software |
Group 11 | R32C SPI | R5F64219JFB | Base Software |
Group 11 | R32C SPI | R5F64219KFB | Base Software |
Group 11 | R32C SPI | R5F64524KFD | Base Software |
Group 11 | R32C SPI | R5F64525KFD | Base Software |
Group 11 | R32C SPI | R5F64611JFP | Base Software |
Group 12 | 78K0 | uPD78F0123H | Base Software |
Group 12 | 78K0 | uPD78F9210 | Base Software |
Showing 1 to 30 of 540 entries
